SOUNDSCAPE

Soundscape is an interactive installation that reflects the relationship between sound and form. This wall of ceramic sculptures not only changes in light and shadow, but also makes different sounds when people approach.

2013, at Cornell AAP

Author / Elan Tao, Peter Williamson, Karim Daw and Xueting Wei

Instructor / Jenny Sabin

Keywords / Parametric Design, Ceramic, Interactive Digital

Contribution / Concept development, digital modeling, fabrication, graphical presentation

Design Intention

The theme for this ceramic work was about music, or sound. After researching on the making of ocarina, a simple instrument that can make sound easily, we found that the frequency the wind instrument makes is decided and only decided, by its volume and the length of the nozzle, despite what shape it has. Adopting this idea ceramics can be potentially developed into an interactive installation of generative forms.

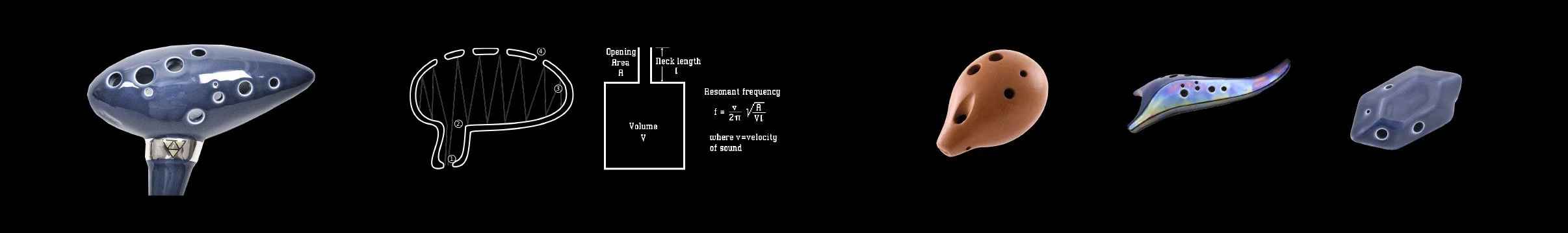

Above: ocarina, ceramics that produce sound. From left to right: typical ocarina, factors defining sound frequency, different shapes of ocarina.

Below: Test of making an interactive ceramic piece, ocarina prototype

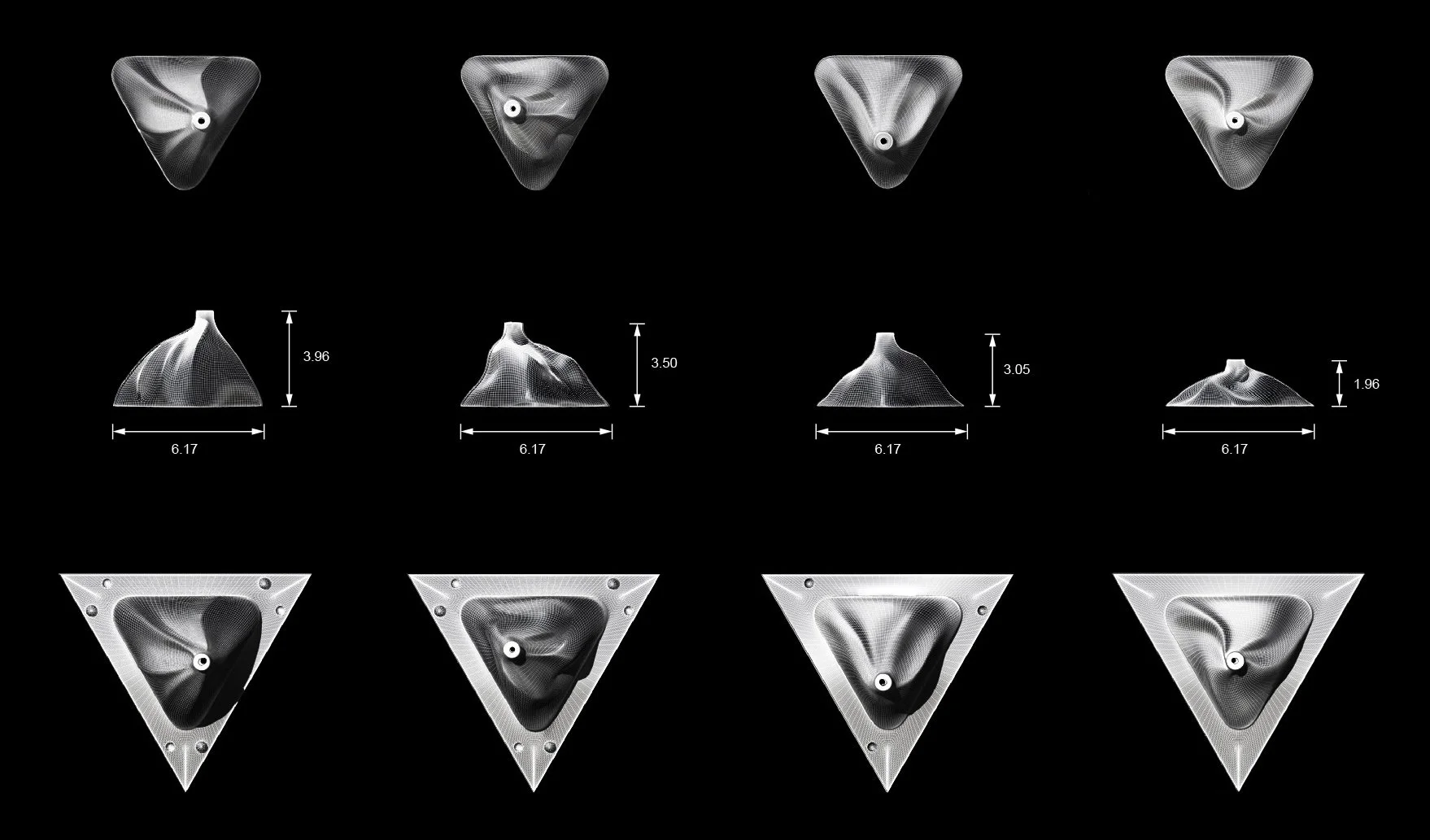

Design the forms and combinations
Left: the final clay vessel, and also the 3D print mold; Right: the plaster mold

Postive Molds & Negative Molds

Virtual models were made in Maya for flexibility to control the geometry. They were then 3D-printed into positive molds, and using these molds we casted negative molds of plaster. The 3D-print molds had a different mesh texture than the original virtual model, which becomes a trace of digital-fabrication on the ceramics. The size of the component, 7x7 inches, is a size comfortable for people to hold in hand.

Left: 3D-print possitive molds, some broken because of the moisture in plaster; Right: Negative molds in plaster

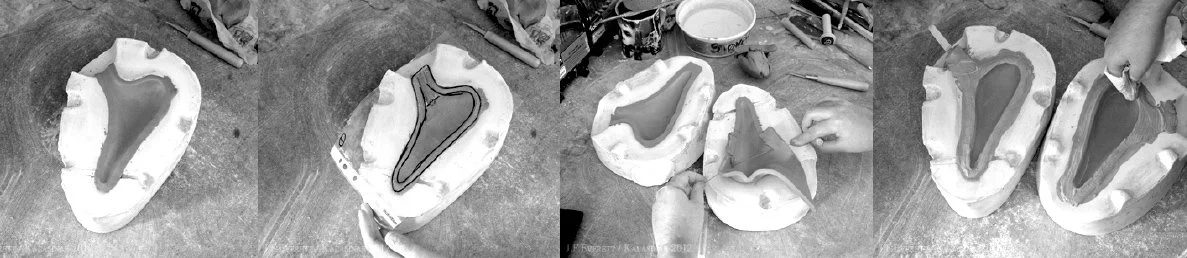

Clay components out of plaster molds

The size of the component, 7x7 inches, is a size comfortable for people to hold in hand.

Form Development

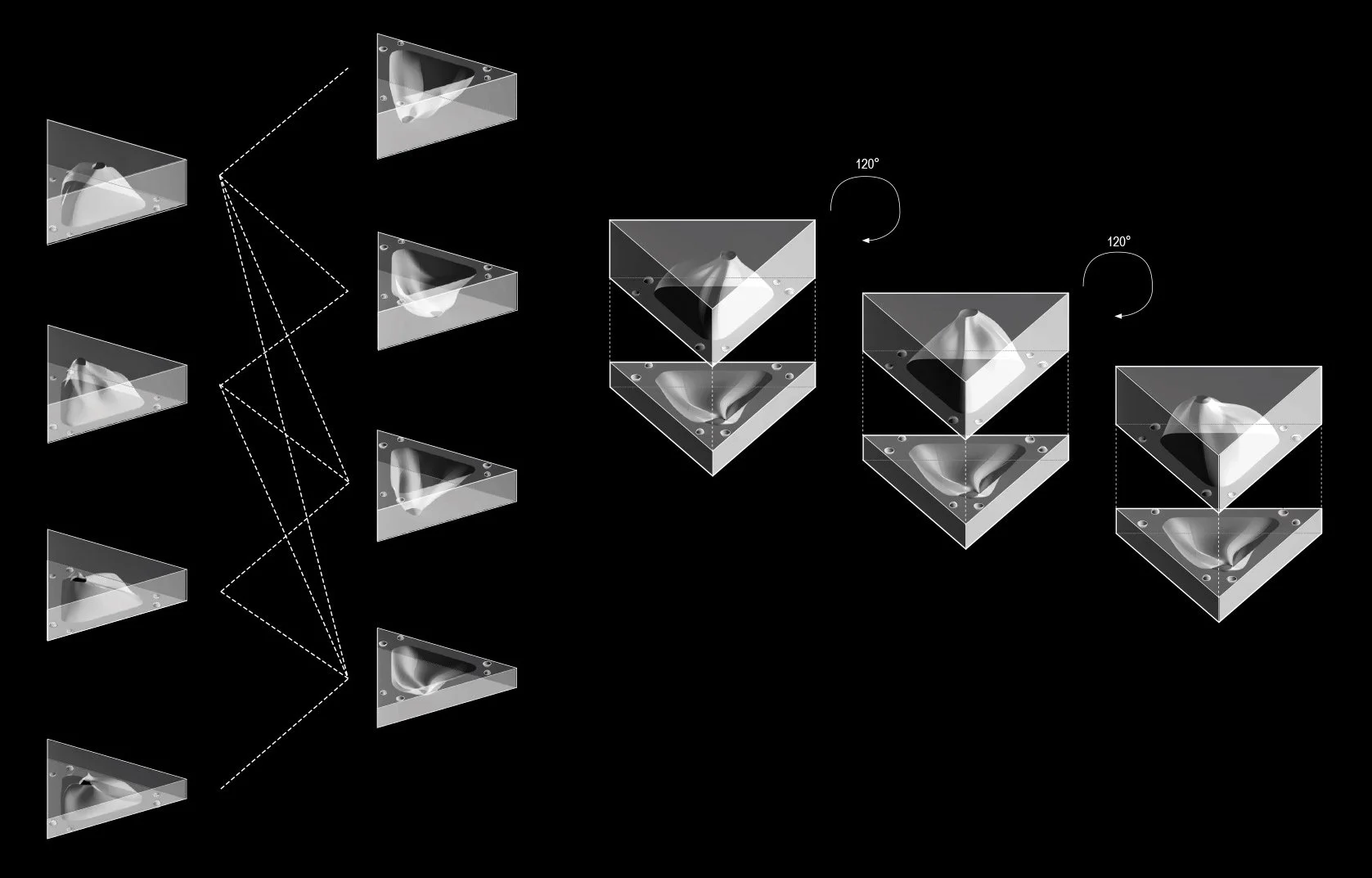

Since ceramic is efficient for mass production but inefficient for generative, individual designs, the fabrication strategy was important to the project. Traditionally the origami molds are consisted of two halves of plaster molds; so if the joint section is the same, different molds can still be joint together and produce a complete ceramic piece. In that case, we designed the joint section as equilateral triangle which allowed the asymmetrical plaster molds to rotate to 3 different positions during the casting. This meant we could multiple the combination by 3 times. Finally, there were 4 molds of different heights, shapes and nozzle positions. With these molds, we got 30 combinations in total.

Iterations: (Conbination < 2 out of 4 > + 4)*(360/120)=(4*3/2+4)*3=30

Installation

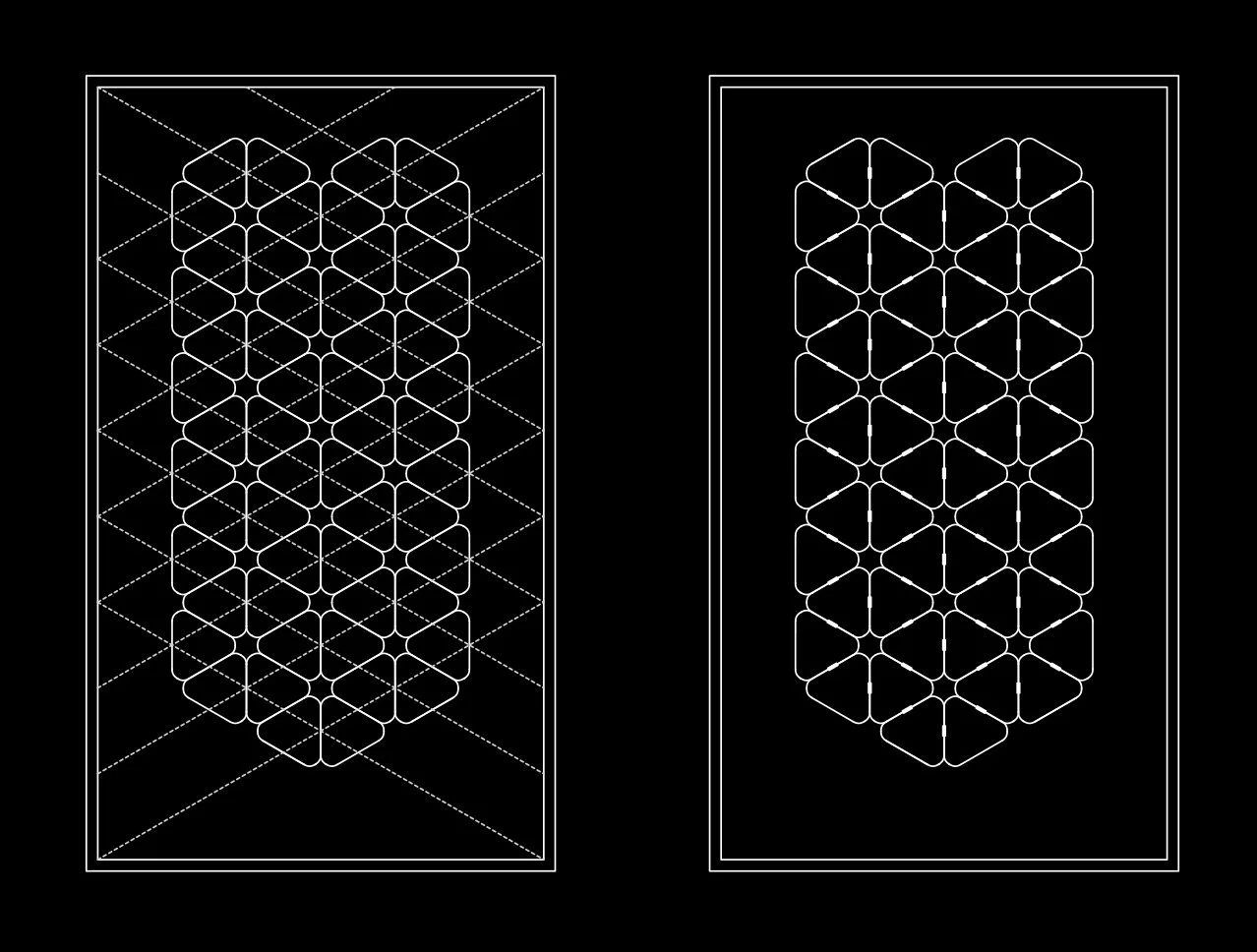

Our component geometry was triangular in section, and the edges each had a cable hole on its midpoint. These cable holes, created to allow the wire dia-grid to pass through the component, were made after clay casting using a laser cut jig. Furthermore, shrinkage of the ceramics after firing was the major issue that needed to be considered in the final installation, which in our measurements was closer to roughly 8%.

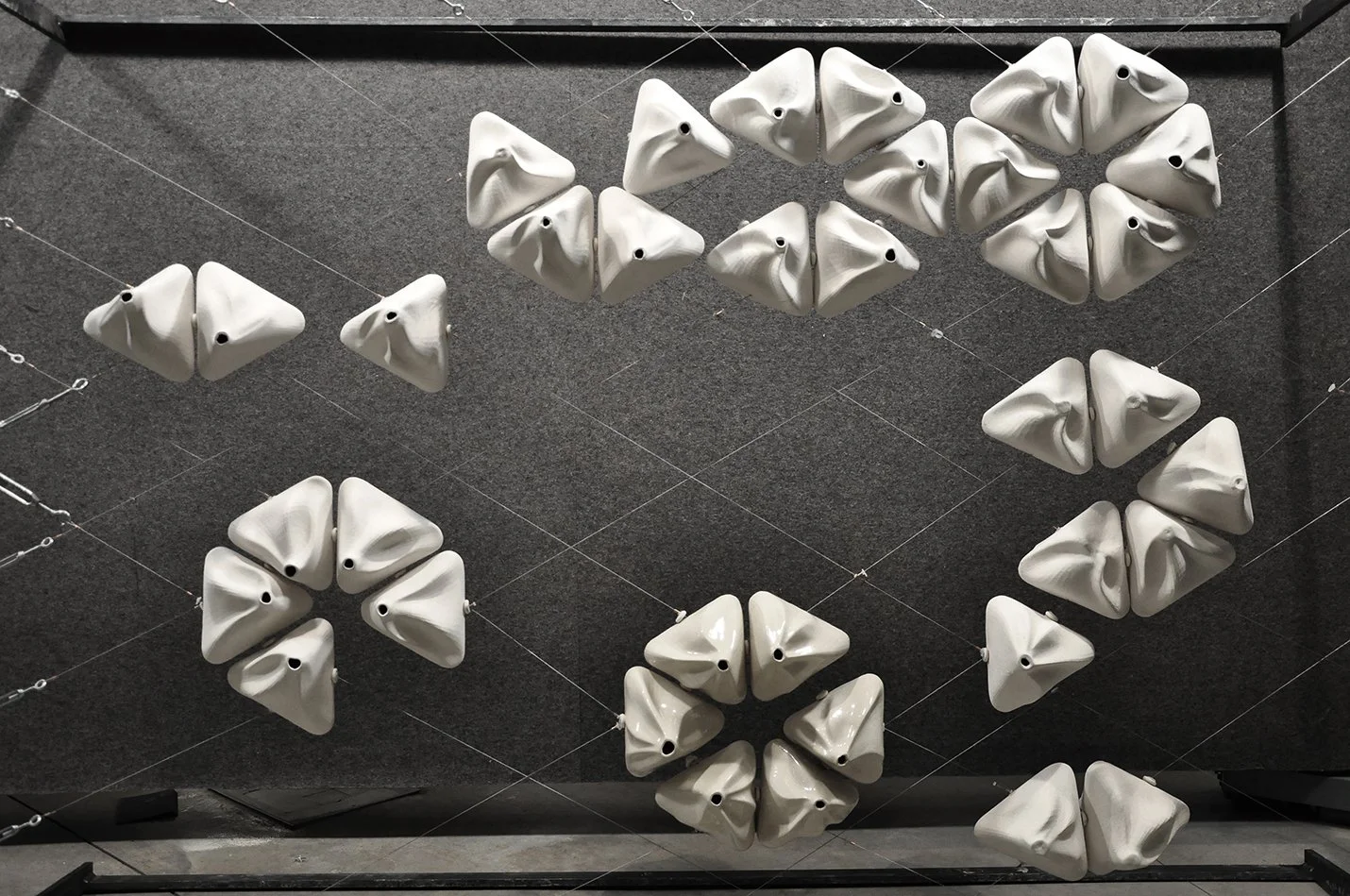

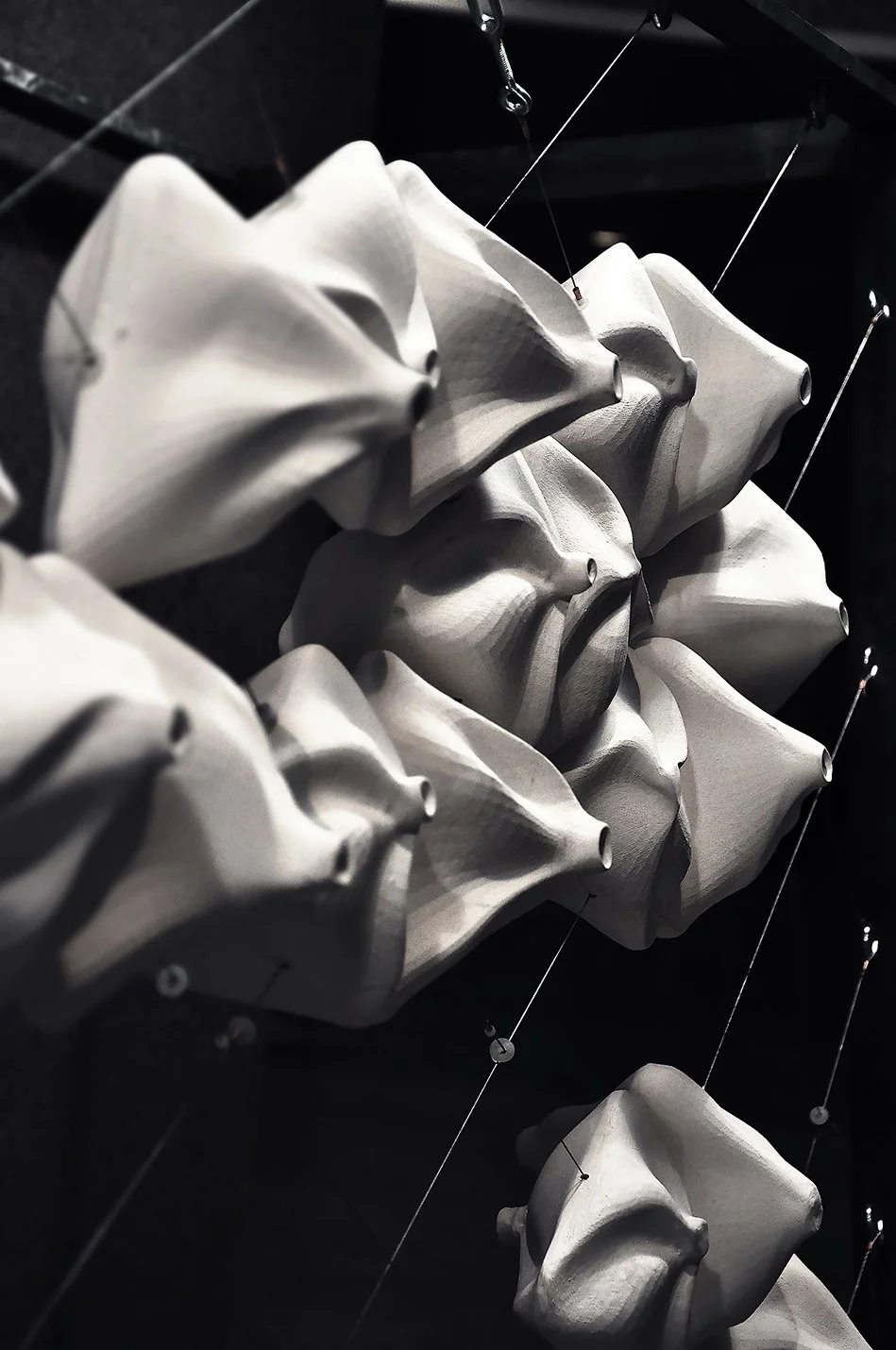

After firing, the ceramic pieces were installed on the grid, and these became an interactive wall of ceramic sculptures, which not only changes in light and shadow, but also makes different sounds when people approach.
